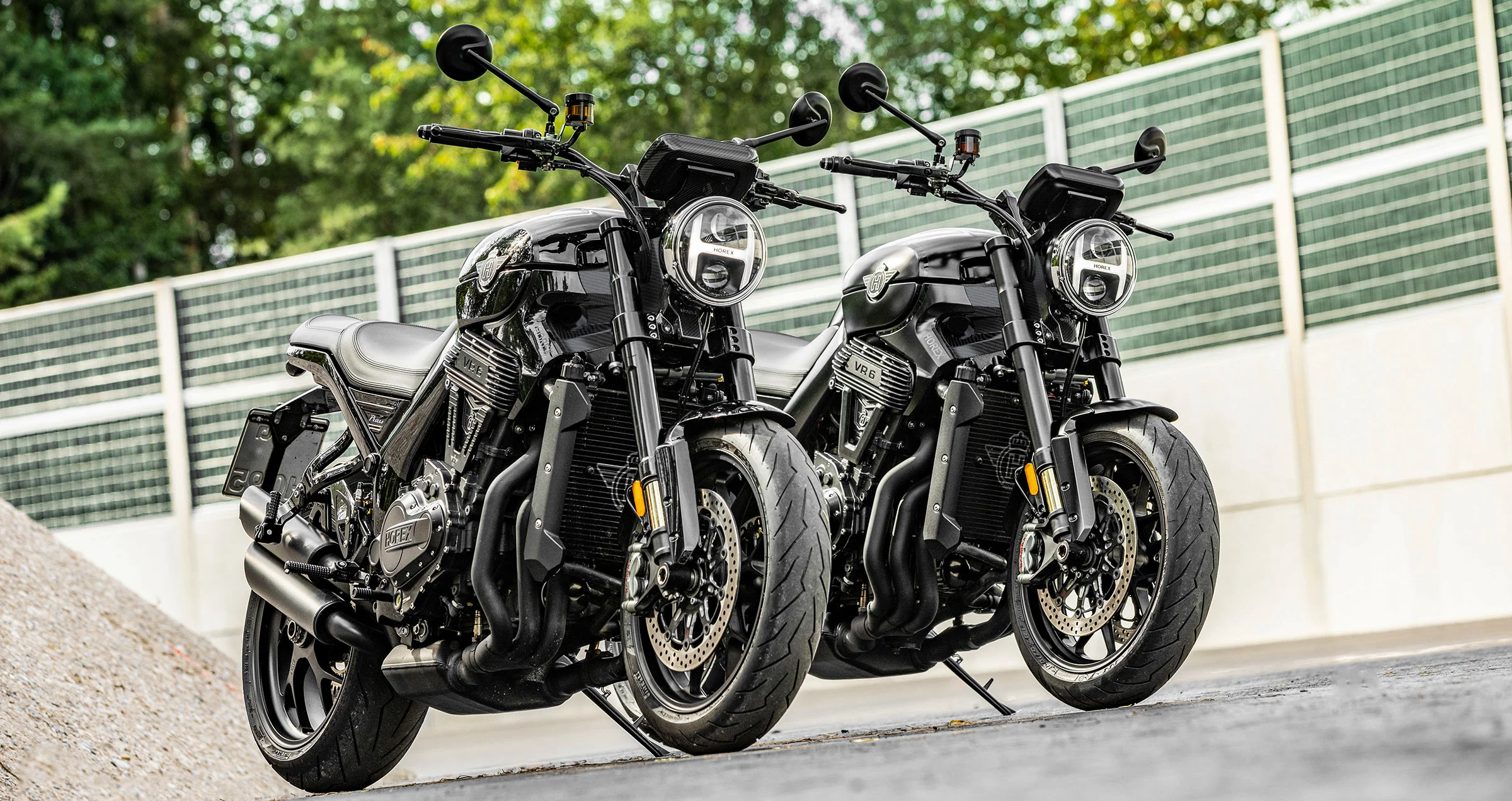

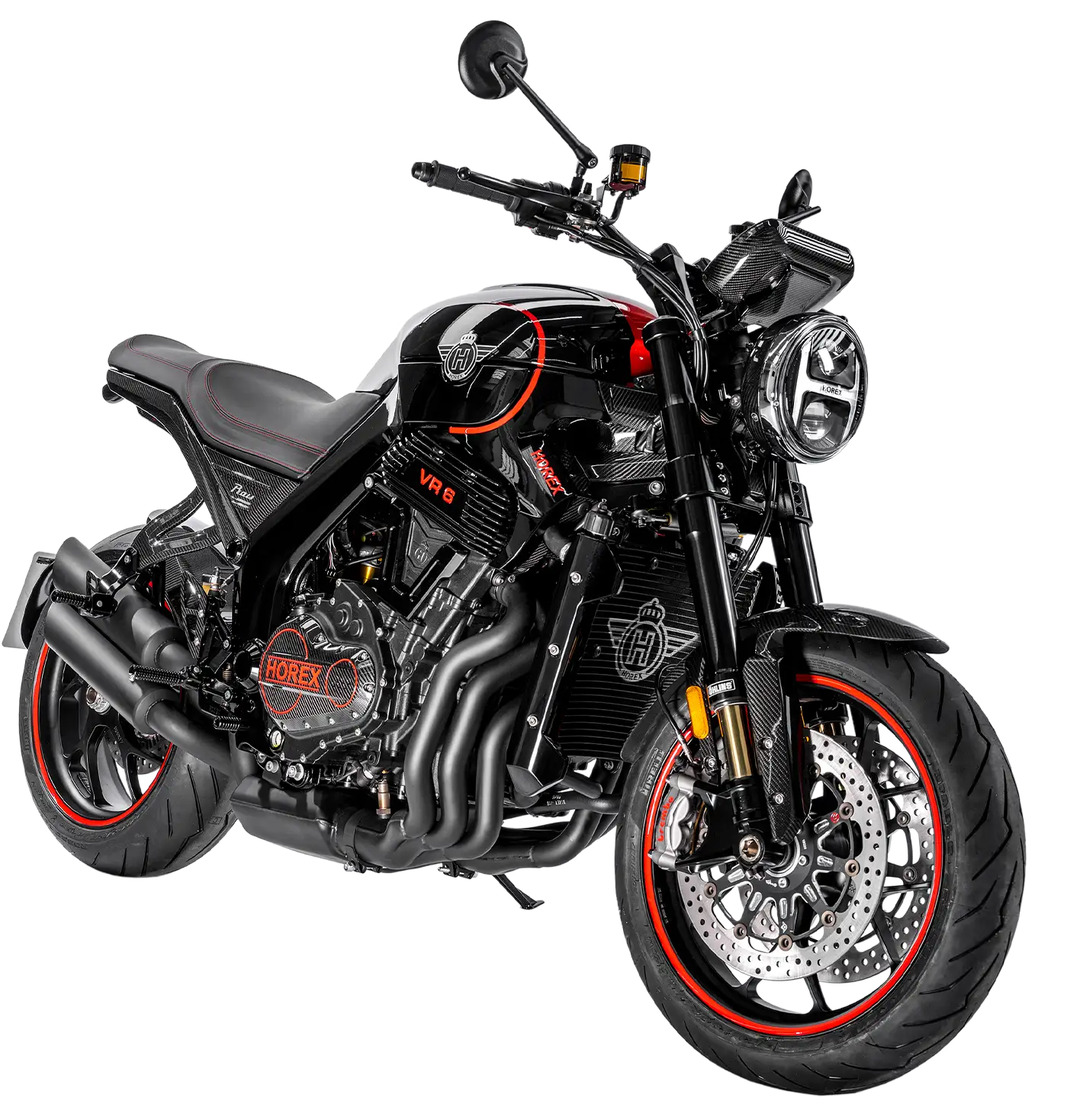

The „VR6 RAW 99“
MORE SPORTY, LIGHTER, AND EVEN MORE EXCLUSIVE: THE HOREX VR6 RAW 99 IS A LIMITED EDITION OF 99 UNITS TO MARK THE 100TH ANNIVERSARY OF HOREX.

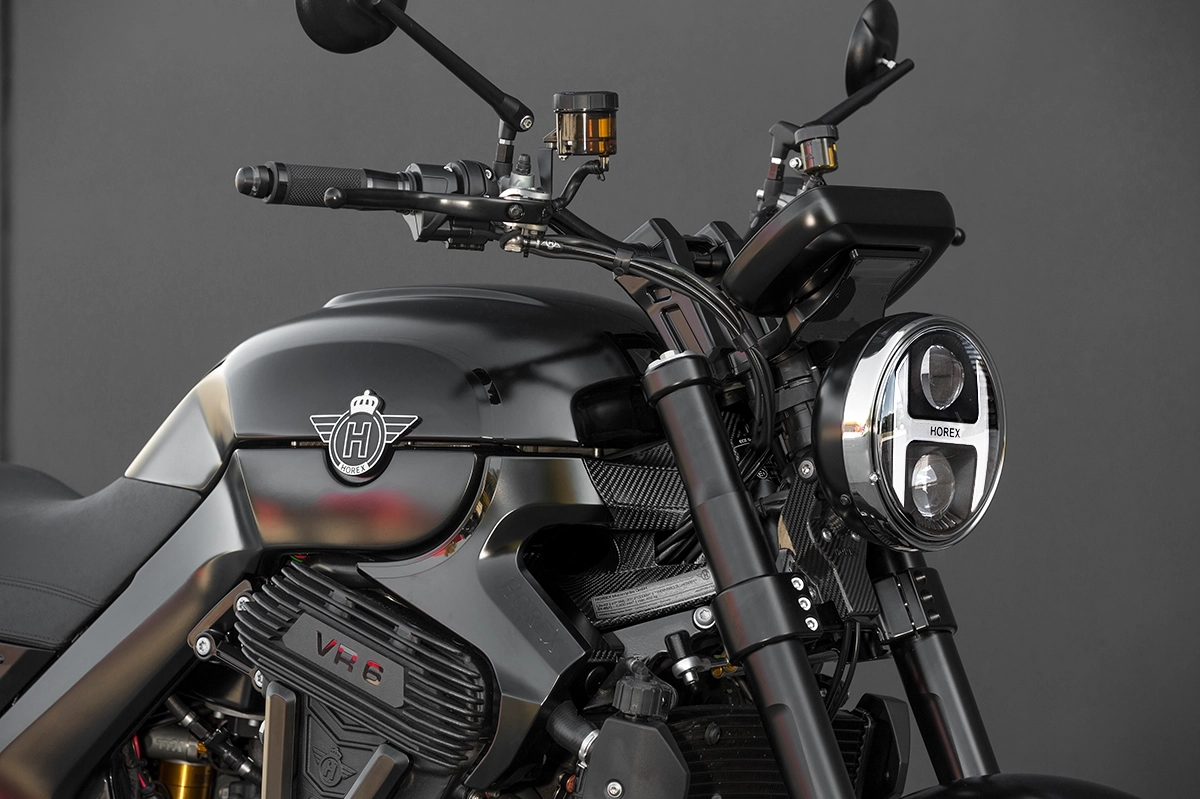

With the HOREX VR6 RAW 99, HOREX presents the ultimate evolution of the VR6 power cruiser. The VR6 RAW 99 was developed on the basis of the successful VR6 models and is immediately recognizable from the front by the iconic “H” graphic of the adaptive full-LED headlight (with cornering light) in HOREX's most modern design. From a technical perspective, numerous functional components that already made the old RAW highly desirable have been further developed. For example, the previously optional CFRP steering head, which further optimizes weight distribution, is now fitted as standard. This elite feature ensures an even more impressive and dynamic riding experience. This striking upgrade alone results in a weight reduction of 5 kg and higher torsional rigidity, which translates into increased agility and responsiveness on the road when steering. Other weight-saving carbon fiber components include the entire rear construction, the front and rear fenders, the chain guard, the instrument cover, the headlight housing, and the footrest mounts for the rider and passenger. Thanks to this extensive use of ultra-lightweight materials, the RAW 99 is the lightest HOREX VR6 ever produced: 215 kg dry.
|
Performance
163 PS (120 kW)
at 9600 rpm
|
Displacement
1218 cm³
|
|
Cylinder
VR6
|
Torque
128 Nm
at 7600 rpm
|
|
Dry Weight
220 kg
|
V-Max
260 km/h
|
|
Transmission
Six-speed
|
Seatheight
740-820mm
|
Technical Data
|
Conzept
High-End Power Cruiser | Two-seater
|
Frame
Mainframe: Aluminum bridge frame
Rearframe: Carbin fiber structural rear frame |
ABS Sistema
Standard
|
|

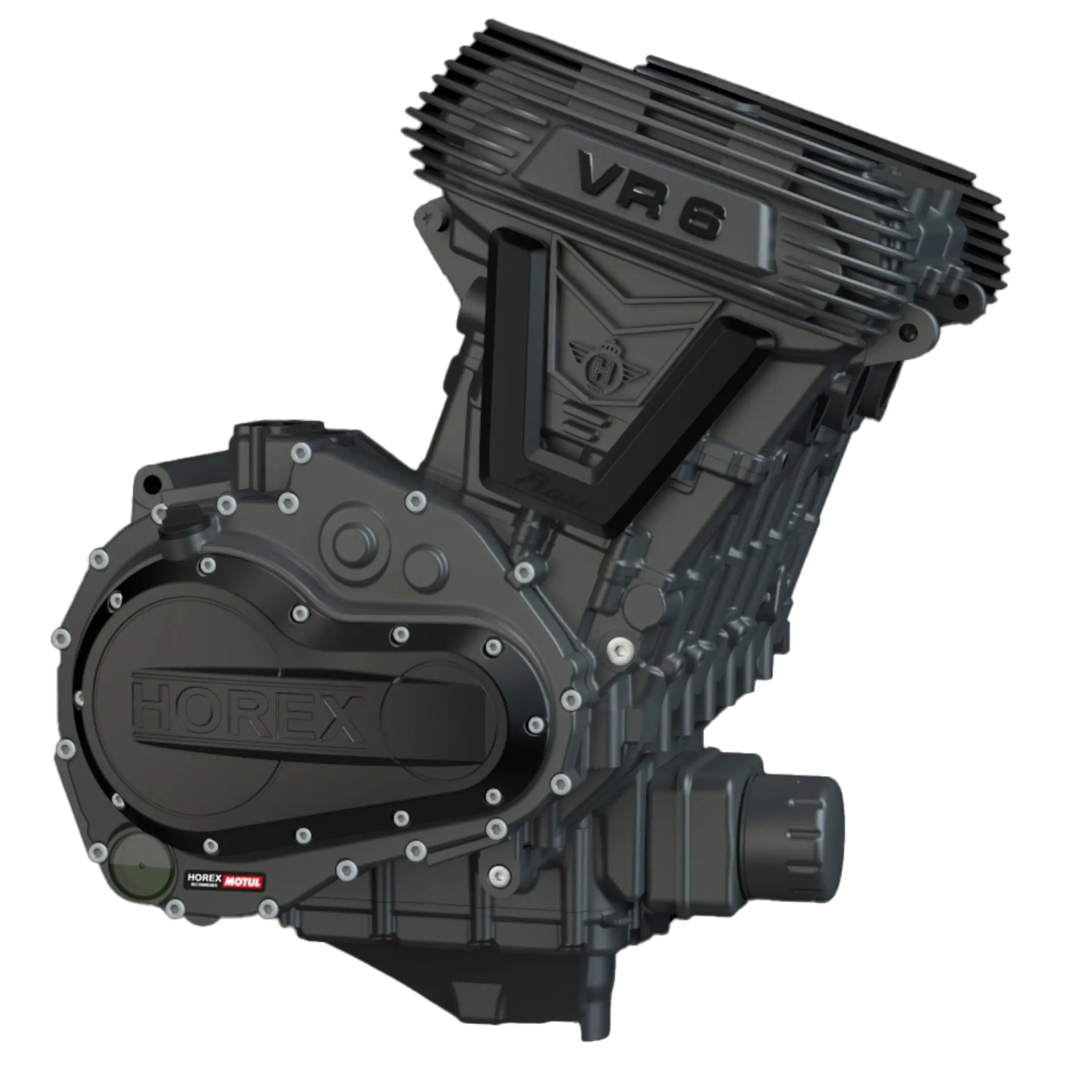

Engine Typ
Water-cooled six cylinder VR engine, three
overhead camshafts (TOHC), 18 valves,
bucket tappetsl
|
Exhaust System
Black Performance stainless steel system
with central catalytic converter silencer
unit and two stainless steel rear silencers
|
Lights
LED headlight,
LED taillights and indicators |
|
Cylinder
VR6
|
Suspension
Front: Öhlins Upside Down fork (⌀ 43 mm) with adjustable spring preload, compression
and rebound damping Rear: Öhlins TTX36 suspension struts with adjustable spring base, rebound and compression damping and built-in hydraulic spring preload adjustment |

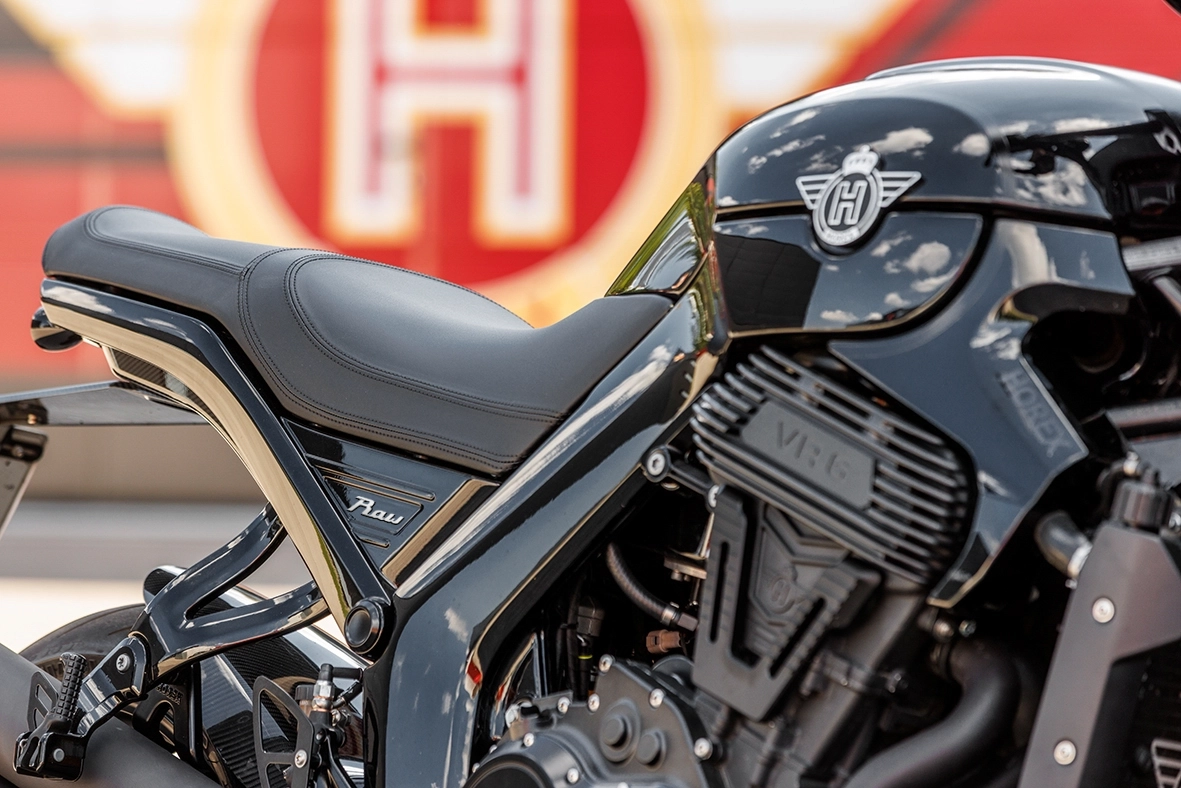

Seat
Continuous bench, cover microfibre
|
|
Displacement
1218 cm3
|
Brake
Front: High-performance Brembo 4-piston
brake system (Brembo M50) with dual
brake discs (Ø 320 mm) Rear: High-performance Brembo 2-piston brake system (Brembo P2.34) with disc brake (Ø 264 mm) |
Seat height
740 – 780 mm
|
|
Performance
163 HP (120 kW)
|
Wheels
HOREX forged aluminum wheels,
Pirelli Diablo Rosso III
|
Weight
Approx. 220 kg (dry-weight)
|
|
Torque
128 Nm
|
Transmission
Six-speed
|
Additional Standard Equipment

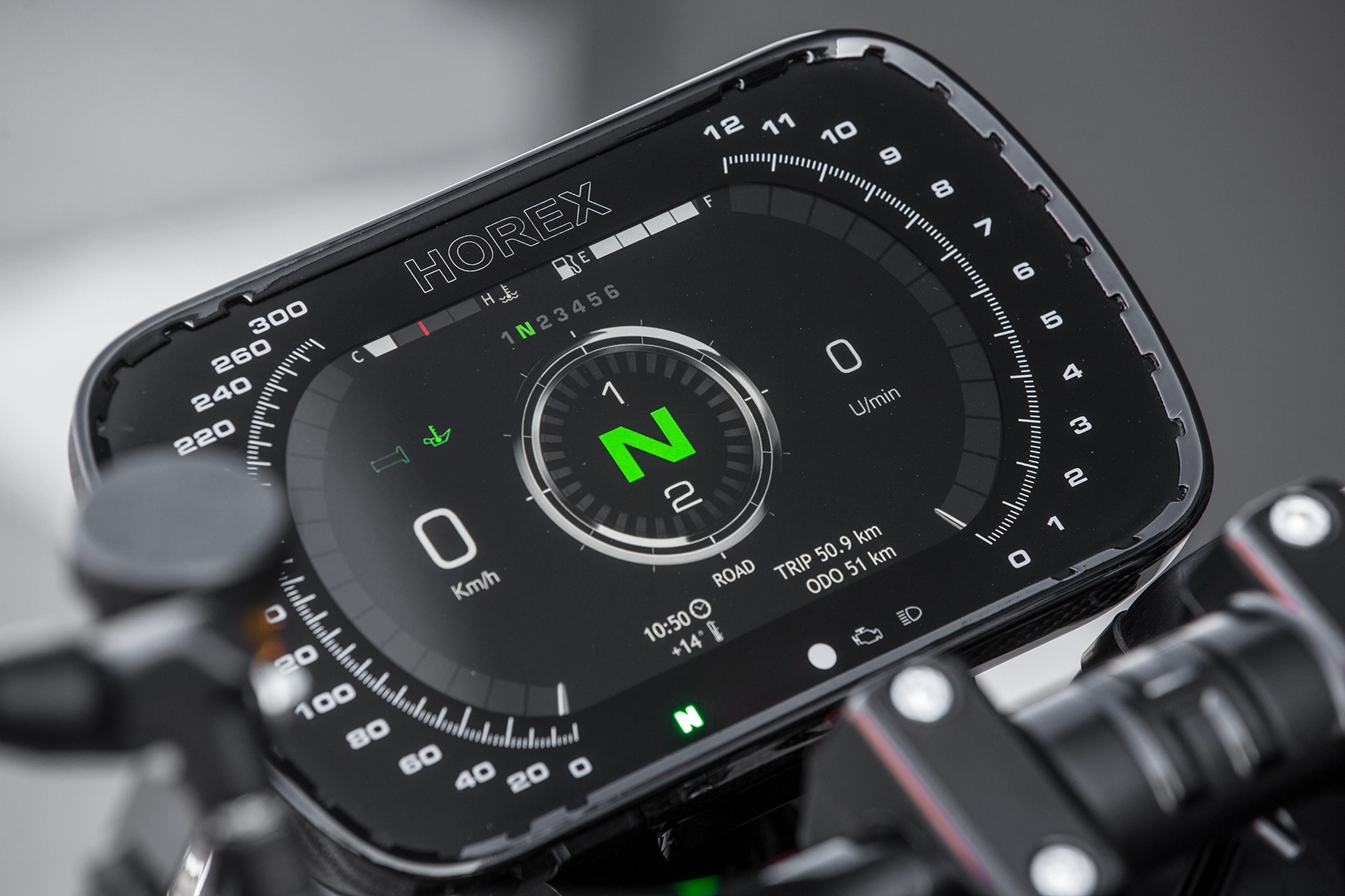

LED-Display, Carbon fiber front and rear fenders Ride-by-Wire, lithium-ion battery, immobilizer
|
Brochure
